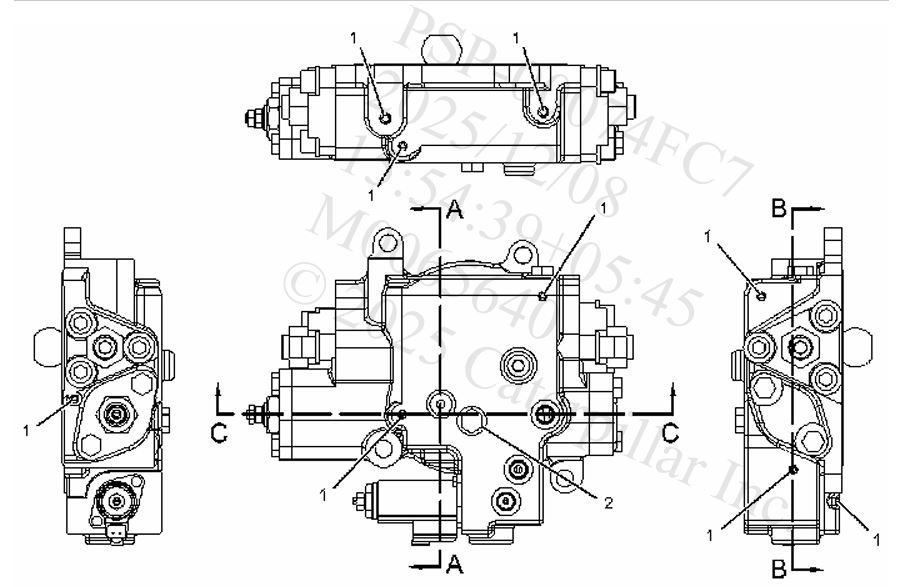

Assembly Procedure
Table 1
15:50:45+05:45
UENR3252
Required Tools
Tool Part Number Part Description
B
1P-2420
© 2025 Caterpillar Inc.
Transmission Repair Stand
C
D
E
H
138-7575
1P-0510
1U-8605
Link Bracket
Driver Group
Seal Guide
1P-1859
1U-6396
Retaining Ring Pliers
Qty
1
3
1
1
1
O-Ring Assembly Compound 1
Illustration 1
g01200516
1. Install gasket (107) onto pump housing (72).
https://sis2.cat.com/#/print-preview/service/be550c66-7075-41a8-bb75-4a4ad7de684e
i05916142
1/24
08/12/2025, 21:35
SIS 2.0
Illustration 2
g01200514
2. Install cover (106) and bolts (105) onto pump housing (72).
Illustration 3
g01200512
3. Install guide pins (104) onto pump housing (72).
Illustration 4
g01200511
4. Install bearings (103) onto pump housing (72).
2/24
https://sis2.cat.com/#/print-preview/service/be550c66-7075-41a8-bb75-4a4ad7de684e
08/12/2025, 21:35
SIS 2.0
Illustration 5
g01200510
5. Install bearing (102) into swashplate (97).
Illustration 6
g01200509
6. Install dowel pins (101) into swashplate (97).
Illustration 7
g01200507
3/24
https://sis2.cat.com/#/print-preview/service/be550c66-7075-41a8-bb75-4a4ad7de684e
08/12/2025, 21:35
SIS 2.0
7. Install bearings (100) onto swashplate assembly (97).
Illustration 8
g01200506
8. Install plate (99) onto swashplate assembly (97).
9. Repeat Step 5 through Step 8 for swashplate assembly (98).
Illustration 9
g01200504
10. Install swashplate assemblies (97) and (98) into pump housing (72).
Note: The swashplate assemblies must be installed in the original position during assembly.
4/24
https://sis2.cat.com/#/print-preview/service/be550c66-7075-41a8-bb75-4a4ad7de684e
08/12/2025, 21:35
SIS 2.0
Illustration 10
g03723301
11. Install retaining ring (90) onto shaft assembly (91).
Illustration 11
g01201656
12. Raise the temperature of bearing (95) and bearing (93). Install bearing (95) and bearing (93)
onto shaft assembly (91).
Illustration 12
g01200498
5/24
https://sis2.cat.com/#/print-preview/service/be550c66-7075-41a8-bb75-4a4ad7de684e
08/12/2025, 21:35
SIS 2.0
13. Install ring (94) onto shaft assembly (91).
14. Repeat Step 11 through Step 13 for shaft assembly (92).
Illustration 13
g01201657
Illustration 14
g01201658
15. Lower the temperature of the shaft assemblies. Install shaft assemblies (91) and (92) into pump
housing (72).
6/24
https://sis2.cat.com/#/print-preview/service/be550c66-7075-41a8-bb75-4a4ad7de684e
08/12/2025, 21:35
g01200492
SIS 2.0
Illustration 15
Note: The pump has been removed from Tooling (B) for photographic purposes only.
16. Use Tooling (E) to install retaining rings (90).
Illustration 16
17. Install springs (89) into barrel (84).
g01200491
Illustration 17
18. Install retainer (88) onto barrel (84).
g01200488
7/24
https://sis2.cat.com/#/print-preview/service/be550c66-7075-41a8-bb75-4a4ad7de684e
08/12/2025, 21:35
SIS 2.0
Illustration 18
19. Install cap (87) onto barrel (84).
g01200487
Illustration 19
g01200486
20. Install pistons (85) into piston plate (86).
Illustration 20
g01200485
21. Install piston assembly (83) into barrel (84).
8/24
https://sis2.cat.com/#/print-preview/service/be550c66-7075-41a8-bb75-4a4ad7de684e
08/12/2025, 21:35
PSP-00074FC7
2025/12/08
SIS 2.0
22. Repeat Step 17 through Step 21 for the remaining barrel assembly.
15:50:45+05:45
UENR3252
© 2025 Caterpillar Inc.
Illustration 21
g01200482
23. Install barrel assemblies (81) and (82) into pump housing (72).
Note: It may be necessary to use string to aid in the removal procedure. The barrel assemblies
must be installed in the original position during assembly.
Illustration 22
g01200481
24. Install O-ring seal (80) onto covers (78).
9/24
https://sis2.cat.com/#/print-preview/service/be550c66-7075-41a8-bb75-4a4ad7de684e
08/12/2025, 21:35
SIS 2.0
Illustration 23
g01200477
25. Install covers (78), bolts (77), and plugs (79) onto pump housing (72).
Illustration 24
g01200478
26. Install O-ring seals (76) into pump housing (72).
Illustration 25
27. Install plug (76) into covers (75).
g01200475
10/24
https://sis2.cat.com/#/print-preview/service/be550c66-7075-41a8-bb75-4a4ad7de684e
08/12/2025, 21:35
SIS 2.0
Illustration 26
g01200473
28. Install covers (75), bolts (74), and plugs (73) onto pump housing (72).
Illustration 27
g01200472
29. Install O-ring seals (68) and (69) onto pump housing (72). Install port plates (70) and (71).
Note: The port plates must be installed in the original position during assembly.
11/24
https://sis2.cat.com/#/print-preview/service/be550c66-7075-41a8-bb75-4a4ad7de684e
08/12/2025, 21:35
g01200471
SIS 2.0
Illustration 28
30. Install orifices (67) into head (58).
Illustration 29
g01200462
31. Install plugs (65) and (66) into head (58).
Illustration 30
32. Install bearings (64) into the head.
g01201668
12/24
https://sis2.cat.com/#/print-preview/service/be550c66-7075-41a8-bb75-4a4ad7de684e
08/12/2025, 21:35
SIS 2.0
Illustration 31
g01200459
33. Install O-ring seal (63) into covers (61).
Illustration 32
g01200458
34. Install nipples (62), covers (61) and bolts (60) onto head (58). Install caps (59) onto nipples
(62).
Illustration 33
g01200457
13/24
https://sis2.cat.com/#/print-preview/service/be550c66-7075-41a8-bb75-4a4ad7de684e
08/12/2025, 21:35
SIS 2.0
Personal injury can result from being struck by parts propelled
by a released spring force.
Make sure to wear all necessary protective equipment.
Follow the recommended procedure and use all recommended
tooling to release the spring force.
35. Attach Tooling (C) and a suitable lifting device to head (10). Install head (58), bolts (56), and
bolts (57). The weight of head (58) is approximately 41 kg (90 lb).
Illustration 34
g01200392
36. Install O-ring seal (54) and lip seal (55) onto the seal assembly.
Illustration 35
g01201683
14/24
https://sis2.cat.com/#/print-preview/service/be550c66-7075-41a8-bb75-4a4ad7de684e
08/12/2025, 21:35
SIS 2.0
37. Install shrink wrap on the shaft. This will protect the seal during the installation procedure.
Install the gasket and bell housing (53). Install bolts (51).
Illustration 36
g01201684
38. Use Tooling (D) to install seal assembly (52).
Illustration 37
g00706275
39. Install plugs (49). Install three plugs (50) into the pump control.
15/24
https://sis2.cat.com/#/print-preview/service/be550c66-7075-41a8-bb75-4a4ad7de684e
08/12/2025, 21:35
g00882609
SIS 2.0
Illustration 38
40. Install slide plate (47) and dowel (48) onto the control linkage.
Illustration 39
g00706273
41. Install control linkage (46) and sleeve (45) into the pump control.
Illustration 40
42. Install O-ring seal (44) onto the pin.
g00706272
16/24
https://sis2.cat.com/#/print-preview/service/be550c66-7075-41a8-bb75-4a4ad7de684e
08/12/2025, 21:35
SIS 2.0
Illustration 41
43. Install pin (43) into the pump control.
g00706271
Illustration 42
g00882608
Personal injury can result from being struck by parts propelled
by a released spring force.
Make sure to wear all necessary protective equipment.
Follow the recommended procedure and use all recommended
tooling to release the spring force.
44. Install shims (38), spool (39), spring (40), spring (41), and control piston (42) into the pump
control.
17/24
https://sis2.cat.com/#/print-preview/service/be550c66-7075-41a8-bb75-4a4ad7de684e
08/12/2025, 21:35
SIS 2.0
PSP-00074FC7
2025/12/08
15:50:45+05:45
UENR3252
Illustration 43
© 2025 Caterpillar Inc.
g00706267
45. Install O-ring seal (37) onto the cover.
Illustration 44
g00706266
46. Install cover (36) onto the pump control. Install bolts (35).
Illustration 45
g00706265
47. Install pilot piston (34) into the pump control.
18/24
https://sis2.cat.com/#/print-preview/service/be550c66-7075-41a8-bb75-4a4ad7de684e
08/12/2025, 21:35
SIS 2.0
Illustration 46
g00882601
48. Install ball (33) into the guide. Install guide (32) into the pump control. Install spring (31) and
spring (30) into the pump control.
Illustration 47
g00882599
49. Install O-ring seal (26) onto the adjuster. Install adjuster (24). Install setscrew (22). Install nut
(23) and nut (25). Install O-ring seal (27) onto the retainer. Install retainer (29). Install O-ring
seal (28).
19/24
https://sis2.cat.com/#/print-preview/service/be550c66-7075-41a8-bb75-4a4ad7de684e
08/12/2025, 21:35
SIS 2.0
Illustration 48
g00706249
Personal injury can result from being struck by parts propelled
by a released spring force.
Make sure to wear all necessary protective equipment.
Follow the recommended procedure and use all recommended
tooling to release the spring force.
50. Install cover assembly (21) into the pump control. Install bolts (20).
Illustration 49
51. Install dowel pin (19) into the pin.
g00706243
20/24
https://sis2.cat.com/#/print-preview/service/be550c66-7075-41a8-bb75-4a4ad7de684e
08/12/2025, 21:35
SIS 2.0
Illustration 50
g00706239
52. Place the pump control in a soft jawed vise. Support pin assembly (17). Install pin assembly
(17) into the pump control. Install piston (18) into the pump control.
Illustration 51
g00706179
53. Install O-ring seal (15) and backup ring (16) onto the stopper.
Illustration 52
g00706177
21/24
https://sis2.cat.com/#/print-preview/service/be550c66-7075-41a8-bb75-4a4ad7de684e
08/12/2025, 21:35
SIS 2.0
54. Install stopper (14) into the pump control.
Illustration 53
g00882598
55. Install screw (13). Install bolts (11). Install cover (12) into the pump control.
Illustration 54
g00706166
56. Install nut (10) onto the pump control.
57. Repeat Step 53 through Step 56 for the other side of the pump control.
22/24
https://sis2.cat.com/#/print-preview/service/be550c66-7075-41a8-bb75-4a4ad7de684e
08/12/2025, 21:35
g01202631
SIS 2.0
Illustration 55
Right Pump Only
58. Install O-ring seal (6), O-ring seal (7), O-ring seal (8), and O-ring seal (9) onto the proportional
reducing valve.
Illustration 56
Right Pump Only
g01202630
59. Install proportional reducing valve (5) onto pump control (1). Install bolts (4).
Illustration 57
60. Install pump control (1).
61. Install bolts (2) and fitting (3).
End By:
g01200312
a. Install the main hydraulic pump. Refer to Disassembly and Assembly, “Main Hydraulic Pump
Install”.
